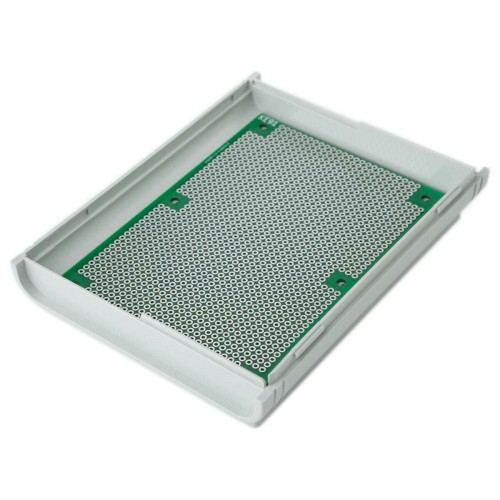

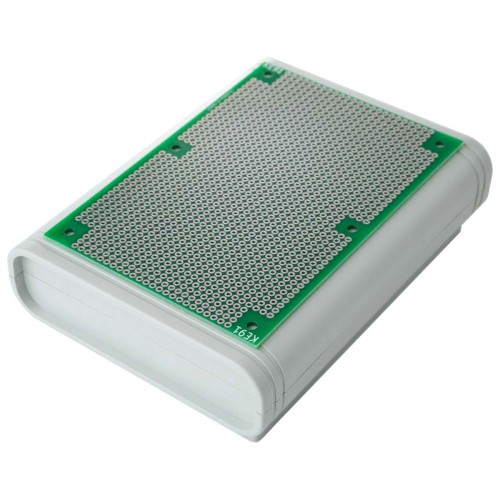

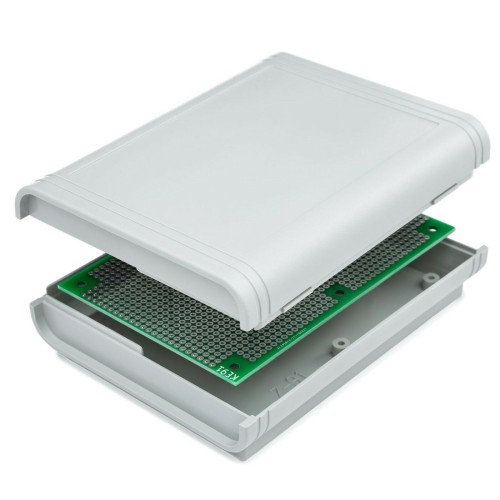

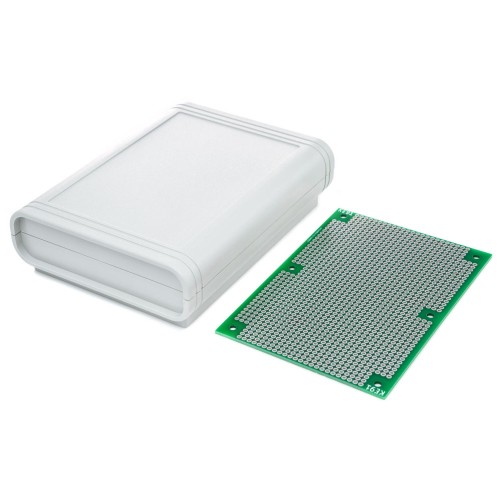

A high - quality double-sided Prototype Circuit Board which comes complete with two-part enclosure
Ideal for one-off electronic projects, prototyping, for home energy, home automation and control units
Circuit/Matrix PCB:
- External Dimensions (L x W): 115 x 81 (4.53 x 3.19 inch)
- Thickness: 1.6mm
- Grid: 0.1" (2.54mm)
- Material: FR4 glass - epoxy laminate
- Tinned solder pads on both sides of the board
- All holes are plated through
- 6 x handy screw mounting hole (screw supplied)
- Requires no cutting to fit the box

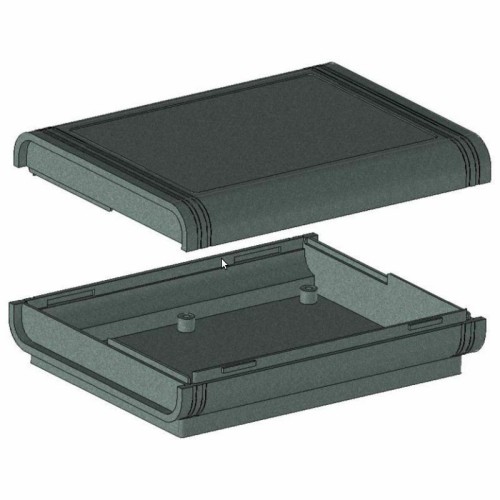

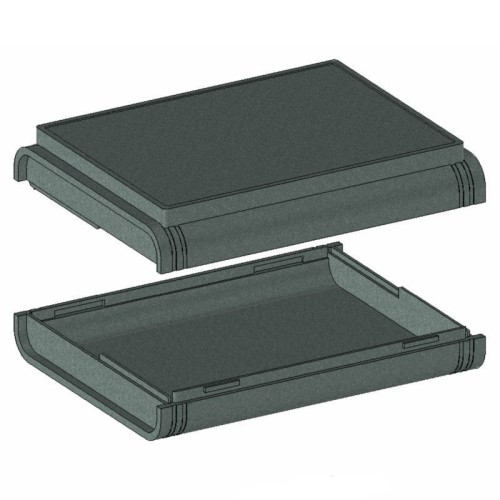

Project Box:
- External Dimensions (L x W x H): 130 x 100 x 36 MM (5.12 x 3.94 x 1.42 inch)
- Available in light grey
- Material: ABS - easy to drill/punch
- Box halves snap in - no screws required
- A recessed area in the top lid, ideally suitable for membrane keypad use
- 6 PCB standoffs on the inside surface of the base
KE91-PROTOKIT Universal PCB Circuit Matrix Board + ABS Box Enclosure for Electronic Prototypes
- Product Code: KE91-PROTOKIT
- Availability: In Stock
-
£8.00
Tags: enclosure, case, grey, box, battery, desktop, plastic, project, PCB, prototype, circuit, board, matrix, electronic, prototypes
